Access Control

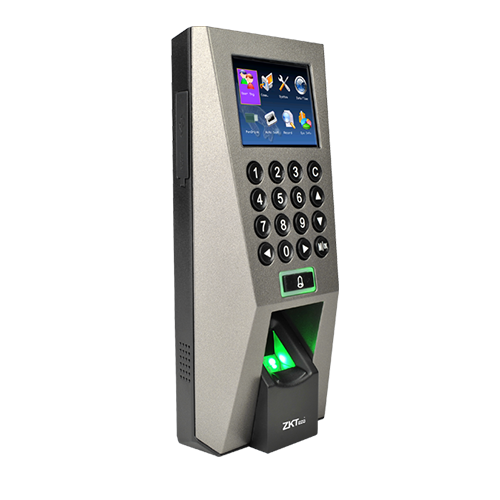

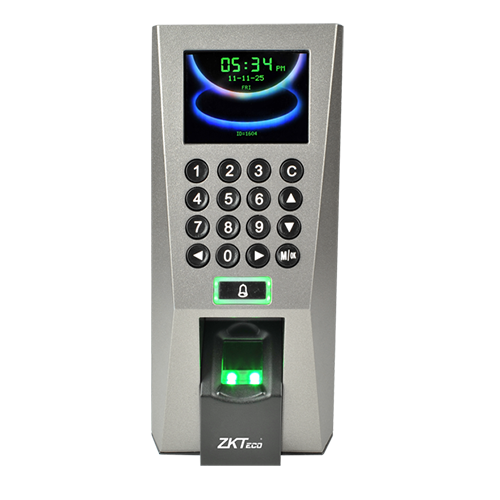

F18 Access Control Terminal
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID/IC/HID Prox/HID iclass card
- Transaction Capacity:?100,000
- Sensor:?ZK Optical Sensor
- Algorithm Version:?ZK Finger 10.0
- Communication:?RS232/485, TCP/IP, USB-host
- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
- Wiegand Signal:?Input, Output, SRB
- Functions:?DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C – 45 ?C
- Operating Humidity:?20% – 80%
- SDK and Software:?AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
- Dimension:?80 ? 183 ? 42mm (W*D*H)
Downloads
F18 Brochure
F18 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco?s most popular devices.
Based on 0 reviews
Be the first to review “F18 Access Control Terminal”
