F22
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID or IC Card
- Transaction Capacity:?30,000
- Sensor:?Z-ID Sensor (optional)
- Algorithm Version:?ZKFinger V10.0
- Communication:?RS232/485, TCP/IP, USB-host, Wi-Fi

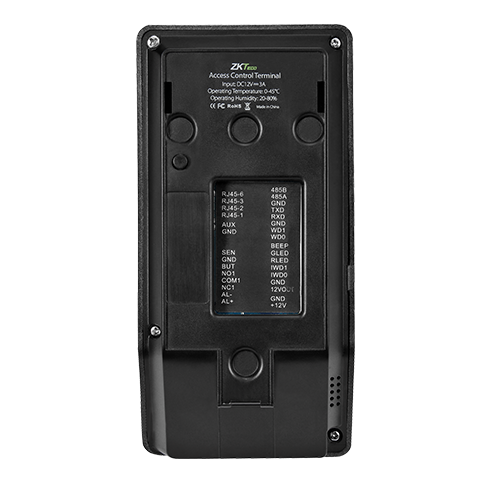

- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
- Wiegand Signal:?Input, Output
- Aux. Input:?1ea for linkage function
- Functions:?DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C – 45 ?C
- Operating Humidity:?20% – 80%
- Dimension:?158.5 x 78.0 x 19.4mm (LxWxH)
- SDK and Software:?PUSH AC SDK, ZKBio Access software
19
People watching this product now!
Description

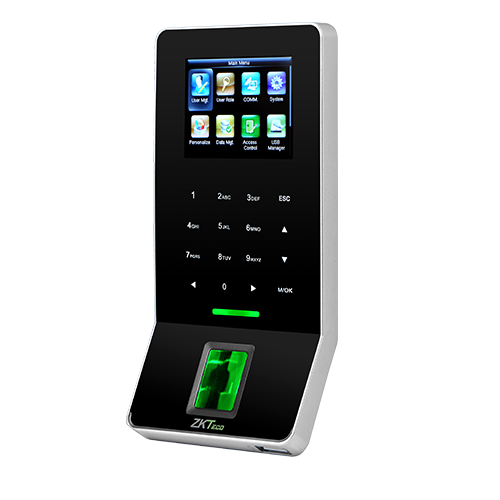

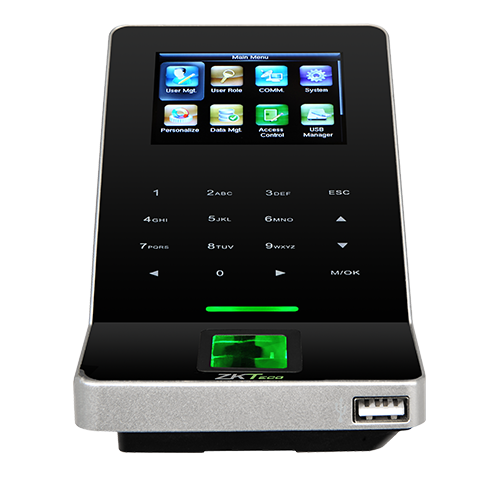

F22 is an ultra-thin fingerprint time attendance and access control ?terminal with Wi-Fi, which offers unparalleled performance with ?advanced algorithm for reliability, precision and excellent matching ?speed. F22 features the fastest commercial-based fingerprint matching ?algorithm and ZKTeco high-performance, highimage quality infrared ?detection fingerprint sensor.
