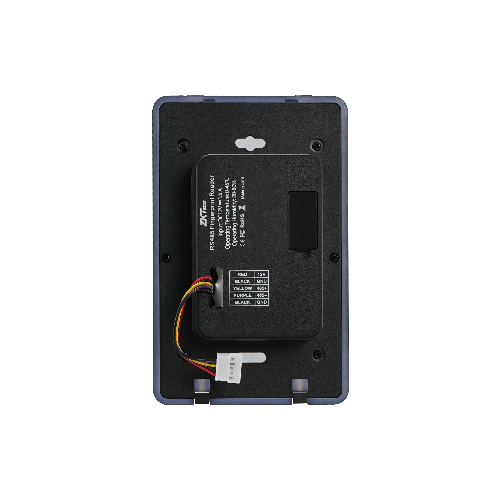

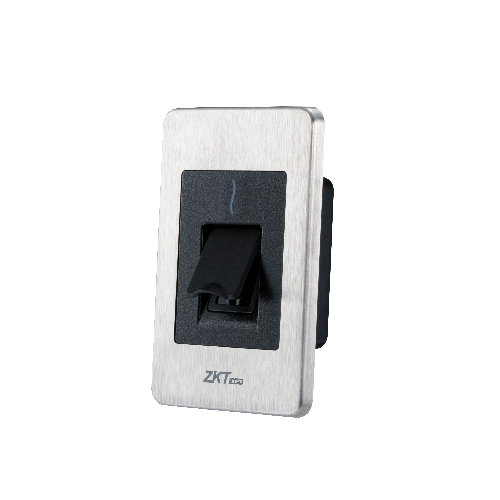

FR1500S Slave Reader
- Sensor: Z-ID Fingerprint Sensor
- Single gang Standard junction box installation.
- RS485 Communication Interface.
- Stainless Steel Front casing.
- Protection level of IP65; fully dust tight and resistant to water splashes from any direction.
- Flush-Mounted Design for neat installation.
13
People watching this product now!
Description
- Operating Temperature:?-10?C to 45?C
- Operating Humidity:?20% to 95%
- Dimension:?121.3 ? 77.3 ? 38 (mm) (L*W*H)
- Algorithm Version:?ZKFinger V10.0
- Net Weight:?14.2g
- Gross Weight:?24.4g
- Power Supply:?DC 12V
- Power Consumption Under Stand-by Mode:?12V * 60mA = 0.72W
- Peak Current of Fingerprint Scanning:?140mA
- Hardware:?CPU of 1.0GHz, Z-ID Sensor, Buzzer Prompt, Three-color Indicator
- Compatibility:?inBio / inBioPro Controllers, Standalone Fingerprint Devices
- Standard Functions:?125KHz RFID Card
- Optional Functions:?125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card
- Communication:?RS485
