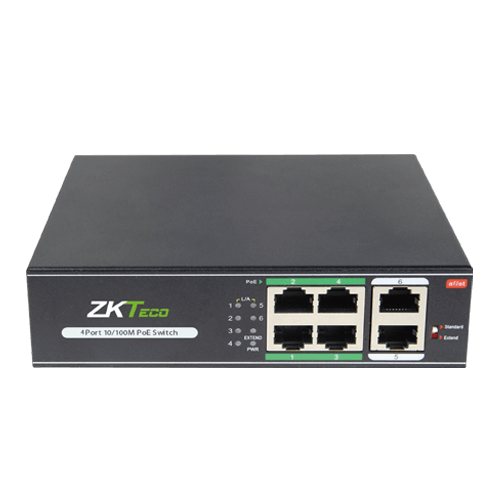

PE04-60 | 4 Ports PoE Network Switch


? Commercial standard switch with 2 layers of network artribute
? 250 meters of PoE transmission distance of power and data
? Max. PoE power output 30W for each port
? Conforms to IEEE 802.3i, IEEE 802.3u and IEEE 802.3X
? Conforms to IEEE 802.3af and IEEE 803.3at
? MDI/MDIX self-adaptation
? Lightning protection System Overview PE04-60 provides a simple network for IP cameras installation, which could run data and power transmission through CAT 5E / 6 cables at the same time. It also supports long transmission distance of 250 meters to save cost for projects to replace extenders, fibers, and coaxial cables, etc.

  • ModelPE04-60
  • Ethernet Port4 PoE Ports (10 / 100 Mbps)
    2 Uplink Ports (10 / 100 Mbps)
    All ports support MDI / MDIX self-adaptation
  • POE StandardIEEE 802.3af, IEEE802.3at
  • PoE ConsumptionMax 30W per Port, total PoE budget 60W
  • Network ProtocolIEEE 802.3i 10BASET
    IEEE 802.3u 100BASETX
    IEEE 802.3x Flow Control
  • Switching Bandwidth1.6Gbps
  • Packet Fowarding Rate0.982Mpps
  • Buffer Memory768KB
  • Mac Table Size1KB
  • MTBF100,000 hours
  • Power InputAC 220V, 50 / 60Hz
  • Lightning Protection2KV
  • Working Temperature-20?C ~ 50?C (-4?F ~ 122?F)
  • Working Humidity10% ~ 90%, non-condensing
  • Dimensions (L*W*H)142 * 113 * 40 (mm)
  • Net Weight1kg
